Federated ResourceQuota

Background

With the widespread use of multi-clusters, the administrator may deploy services on multiple clusters and resource management of services under multiple clusters has become a new challenge. A traditional approach is that the administrator manually deploys a namespace and ResourceQuota under each Kubernetes cluster, where Kubernetes will limit the resources according to the ResourceQuotas. This approach is a bit inconvenient and not flexible enough. In addition, this practice is now challenged by the differences in service scale, available resources and resource types of each cluster.

Resource administrators often need to manage and control the consumption of resources by each service in a global view. Here's where the FederatedResourceQuota API comes in. The following is several typical usage scenarios of FederatedResourceQuota.

What FederatedResourceQuota can do

FederatedResourceQuota supports:

1. ResourceQuota Management

• Set and track overall quota usage for federated applications deployed across clusters. Also supports fine-grained management of quotas under the same namespace of different clusters with:
  • Ability to enumerate resource usage limits per namespace.
  • Ability to monitor resource usage for tracked resources.
  • Ability to reject resource usage exceeding hard quotas.

2. Karmada Control Plane-Level Quota Enforcement

• Enables enforcement of namespaced resource limits at the federated level, not just per-cluster.
• Centralized quota checks:
  • Resource creation and updates against Karmada control-plane
  • Prevents overcommitment by rejecting scheduling requests that would exceed the aggregate quota for the namespace

You can use FederatedResourceQuota to manage CPU, memory, storage and ephemeral-storage.

Deploy a simplest FederatedResourceQuota

Assume you, an administrator, want to deploy service A across multiple clusters in namespace test.

You can create a namespace called test on the Karmada control plane. Karmada will automatically create the corresponding namespace in the member clusters.

kubectl --kubeconfig ~/.kube/karmada.config --context karmada-apiserver create ns test

You want to create a CPU limit of 100 cores for service A. The available resources on clusters:

• member1: 20C
• member2: 50C
• member3: 100C

In this example, allocate 20C of member1, 50C of member2, and 30C of member3 to service A. Resources are reserved for more important services in member3.

You can deploy a FederatedResourceQuota as follows.

apiVersion: policy.karmada.io/v1alpha1
kind: FederatedResourceQuota
metadata:
  name: test
  namespace: test
spec:
  overall:
    cpu: 100
  staticAssignments:
    - clusterName: member1
      hard:
        cpu: 20
    - clusterName: member2
      hard:
        cpu: 50
    - clusterName: member3
      hard:
        cpu: 30

Verify the status of FederatedResourceQuota:

kubectl --kubeconfig ~/.kube/karmada.config --context karmada-apiserver get federatedresourcequotas/test -ntest -oyaml

The output is similar to:

spec:
  overall:
    cpu: 100
  staticAssignments:
  - clusterName: member1
    hard:
      cpu: 20
  - clusterName: member2
    hard:
      cpu: 50
  - clusterName: member3
    hard:
      cpu: 30
status:
  aggregatedStatus:
  - clusterName: member1
    hard:
      cpu: "20"
    used:
      cpu: "0"
  - clusterName: member2
    hard:
      cpu: "50"
    used:
      cpu: "0"
  - clusterName: member3
    hard:
      cpu: "30"
    used:
      cpu: "0"
  overall:
    cpu: "100"
  overallUsed:
    cpu: "0"

For quick test, you can deploy a simple application which consumes 1C CPU to member1.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx
  namespace: test
  labels:
    app: nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - image: nginx
        name: nginx
        resources:
          requests:
             cpu: 1

Verify the status of FederatedResourceQuota and you will find that FederatedResourceQuota can monitor resource usage correctly for tracked resources.

kubectl --kubeconfig ~/.kube/karmada.config --context karmada-apiserver get federatedresourcequotas/test -ntest -oyaml

spec:
  overall:
    cpu: 100
  staticAssignments:
  - clusterName: member1
    hard:
      cpu: 20
  - clusterName: member2
    hard:
      cpu: 50
  - clusterName: member3
    hard:
      cpu: 30
status:
  aggregatedStatus:
  - clusterName: member1
    hard:
      cpu: "20"
    used:
      cpu: "1"
  - clusterName: member2
    hard:
      cpu: "50"
    used:
      cpu: "0"
  - clusterName: member3
    hard:
      cpu: "30"
    used:
      cpu: "0"
  overall:
    cpu: "100"
  overallUsed:
    cpu: "1"

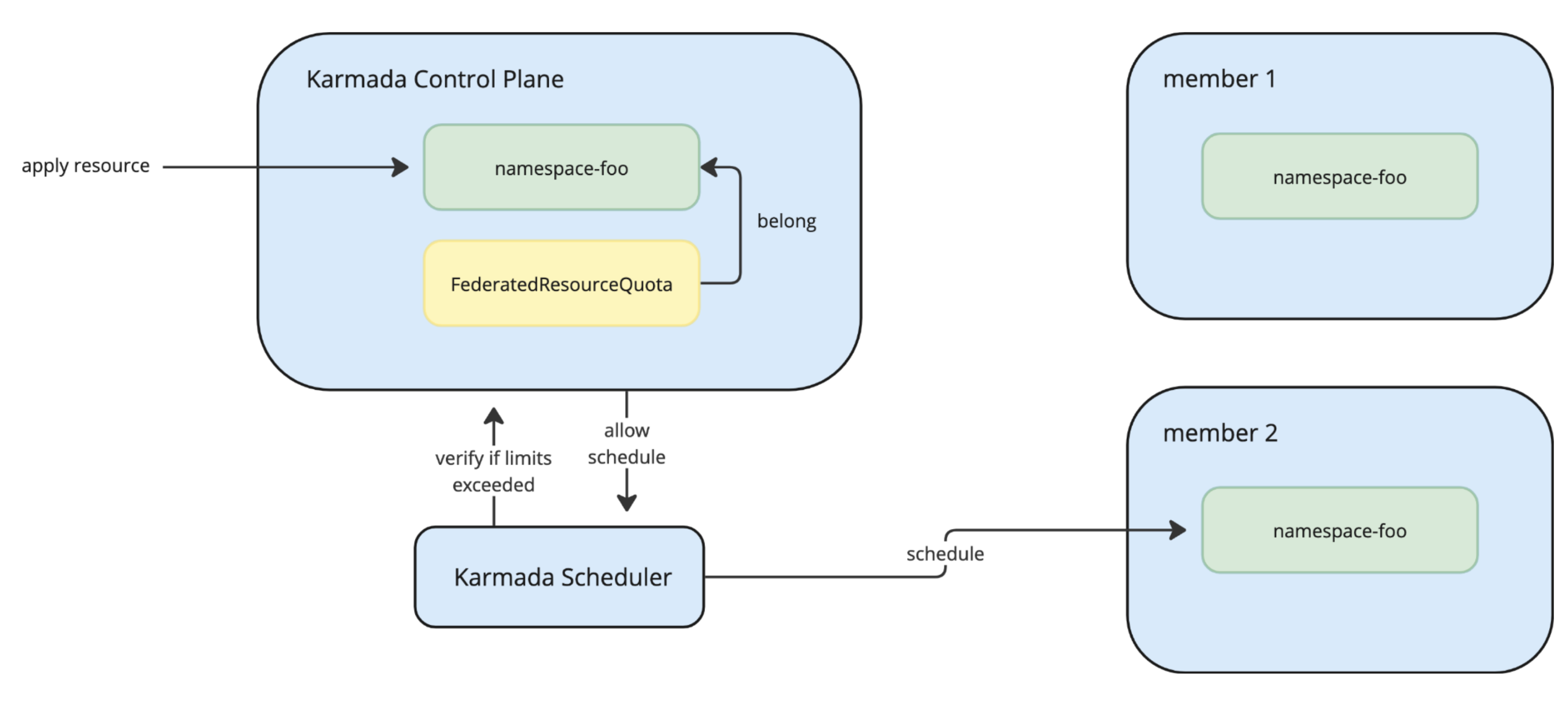

Using FederatedResourceQuota enforcement

note

FederatedResourceQuota enforcement is a new feature. This capability requires enabling the FederatedQuotaEnforcement feature gate. FederatedQuotaEnforcement is currently in Alpha and is turned off by default.

The FederatedResourceQuota's base feature allows user to schedule ResourceQuotas that can control overall resource limits across many clusters using staticAssignment. However, you can also use the FederatedResourceQuota to impose and enforce resource limits directly against the Karmada control-plane.

This can be especially useful if:

• You need to track resource consumption and limits from a unified place
• You would like to prevent unnecessary scheduling to clusters by verifying quota resource limits

Using the previous spec as an example, let's assume you want to set the overall cpu limit to 100. All you would need to do is define the Overall limits:

apiVersion: policy.karmada.io/v1alpha1
kind: FederatedResourceQuota
metadata:
  name: test
  namespace: test
spec:
  overall:
    cpu: 100

Once applied, Karmada will begin monitoring and enforcing the cpu resource limit for the test namespace. Let's assume you apply a new Deployment that has a requirement of 20 CPU. The status of the FederatedResourceQuota will be updated to look like the following:

spec:
  overall:
    cpu: 100
status:
  overall:
    cpu: "100"
  overallUsed:
    cpu: "20"

If you apply a resource that goes above the limit of 100 CPU, the resource will not be scheduled to your member clusters.

note

FederatedResourceQuota is still a work in progress. We are in the progress of gathering use cases. If you are interested in this feature, please feel free to start an enhancement issue to let us know.
